LAOWA PROBE 24MM

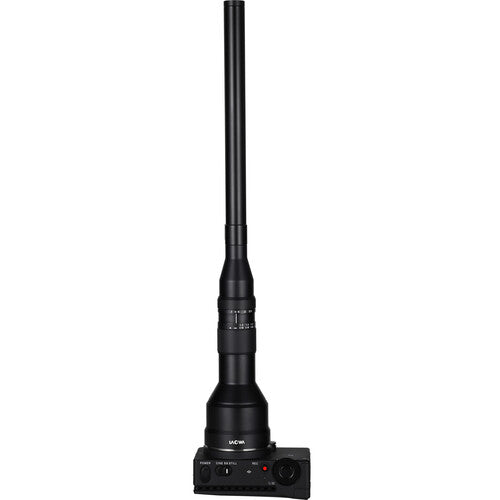

VE2414L Laowa Venus Optics 24mm F/14 Probe Lens for Leica L
Described as "weird but genius," the Leica L-mount Laowa 24mm f/14 Probe from Venus Optics is a truly unique lens designed for close-up shooting. Distinguished by its long, slender lens barrel, this macro lens provides a 2:1 maximum magnification with a 1.5' minimum focusing distance and a close 0.8" minimum working distance. Even with such a close working distance, the lens measures 1.3' long, placing you at a comfortable distance to photograph nearby subjects. Also, as a wide-angle lens, greater depth of field is afforded when compared to traditional telephoto macro lenses, which allows for greater detail in the background with less subject isolation.
-
L-Mount Lens/Full-Frame Format
-
Aperture Range: f/14 to f/40
-
Two Extra-Low Dispersion Elements
-
One Extra Refractive Index Element
-
Magnification: 2:1 to Infinity
-
Min. Focus: 1.5'; Working Distance: 0.8"
-
Long Lens Barrel, Small Front Diameter
-
Built-In LED Ring Light, Micro-USB Power
-
Waterproof Front Lens Barrel
-
Manual Focus Design

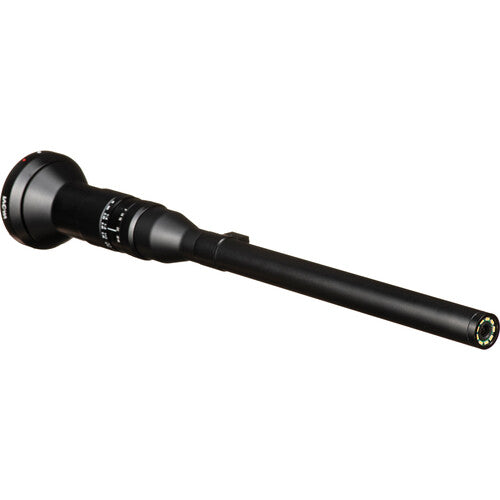

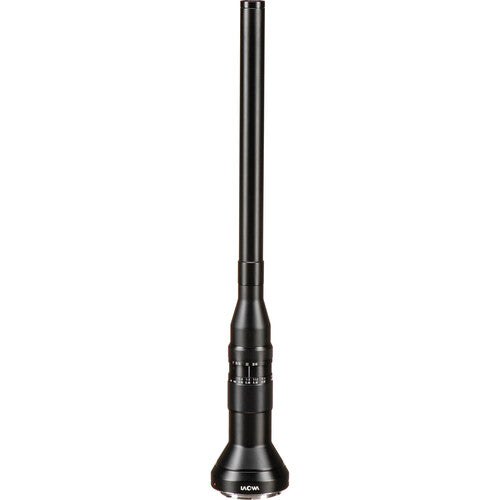

EV2414C Laowa Venus Optics 24 mm F/12 Probe Lens for Canon EF
Described as "weird but genius," the Canon EF-mount Laowa 24mm f/14 Probe from Venus Optics is a truly unique lens designed for close-up shooting. Distinguished by its long, slender lens barrel, this macro lens provides a 2:1 maximum magnification with a 1.5' minimum focusing distance and a close 0.8" minimum working distance. Even with such a close working distance, the lens measures 1.3' long, placing you at a comfortable distance to photograph nearby subjects. Also, as a wide-angle lens, greater depth of field is afforded when compared to traditional telephoto macro lenses, which allows for greater detail in the background with less subject isolation.
-
Full-Frame Format | F/14 to f/40
-
High Depth-of Field Macro Lens
-
Magnification: 2:1 to Infinity
-
Long Lens Barrel, Small Front Diameter
-
Manual Focus, Manual Aperture Ring
-
Two Extra-Low Dispersion Elements
-
One Extra Refractive Index Element
-
Min. Focus: 1.5'; Working Distance: 0.8"
-
Built-In LED Ring Light, Micro-USB Power
-
Waterproof Front Lens Barrel

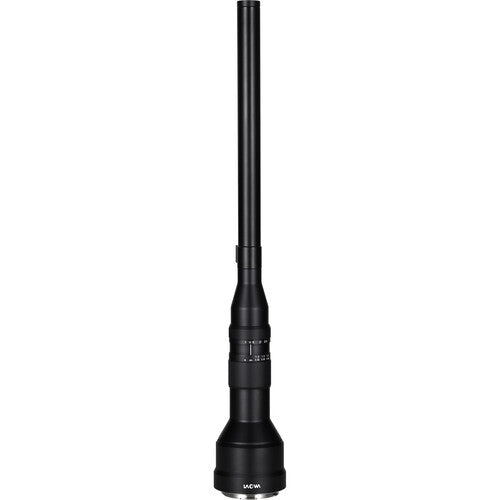

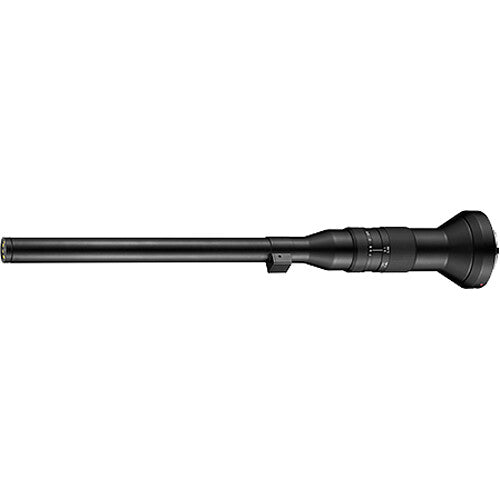

VE2414RF Laowa Venus Optics 24mm F/14 Macro probe
Described as "weird but genius," the Canon RF-mount Laowa 24mm f/14 Probe from Venus Optics is a truly unique lens designed for close-up shooting. Distinguished by its long, slender lens barrel, this macro lens provides a 2:1 maximum magnification with a 1.5' minimum focusing distance and a close 0.8" minimum working distance. Even with such a close working distance, the lens measures 1.3' long, placing you at a comfortable distance to photograph nearby subjects. Also, as a wide-angle lens, greater depth of field is afforded when compared to traditional telephoto macro lenses, which allows for greater detail in the background with less subject isolation.
-
RF-Mount Lens/Full-Frame Format
-
Aperture Range: f/14 to f/40
-
Two Extra-Low Dispersion Elements
-
One Extra Refractive Index Element
-
Magnification: 2:1 to Infinity
-
Min. Focus: 1.5'; Working Distance: 0.8"
-
Long Lens Barrel, Small Front Diameter
-
Built-In LED Ring Light, Micro-USB Power
-
Waterproof Front Lens Barrel
-
Manual Focus Design

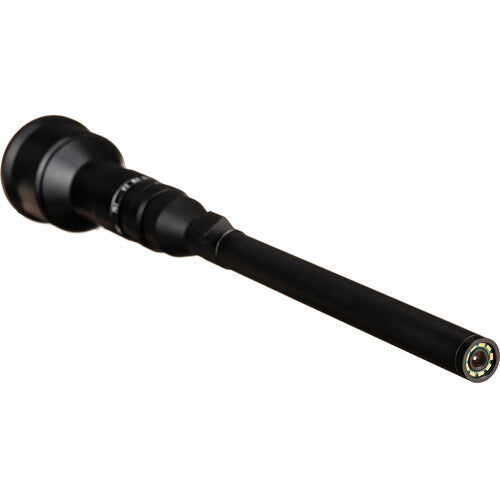

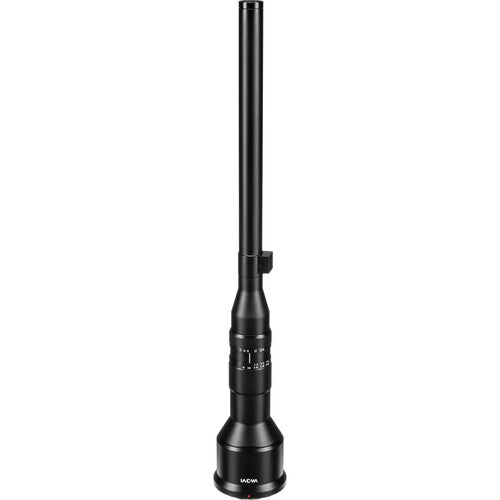

VE2414NZ LAOWA Venus Optics 24mm F/14 Prone Lens for Nikon Z
Described as "weird but genius," the Nikon Z-mount Laowa 24mm f/14 Probe from Venus Optics is a truly unique lens designed for close-up shooting. Distinguished by its long, slender lens barrel, this macro lens provides a 2:1 maximum magnification with a 1.5' minimum focusing distance and a close 0.8" minimum working distance. Even with such a close working distance, the lens measures 1.3' long, placing you at a comfortable distance to photograph nearby subjects. Also, as a wide-angle lens, greater depth of field is afforded when compared to traditional telephoto macro lenses, which allows for greater detail in the background with less subject isolation.
-
Z-Mount Lens/Full-Frame Format
-
Aperture Range: f/14 to f/40
-
Two Extra-Low Dispersion Elements
-
One Extra Refractive Index Element
-
Magnification: 2:1 to Infinity
-
Min. Focus: 1.5'; Working Distance: 0.8"
-
Long Lens Barrel, Small Front Diameter
-
Built-In LED Ring Light, Micro-USB Power
-
Waterproof Front Lens Barrel
-
Manual Focus Design

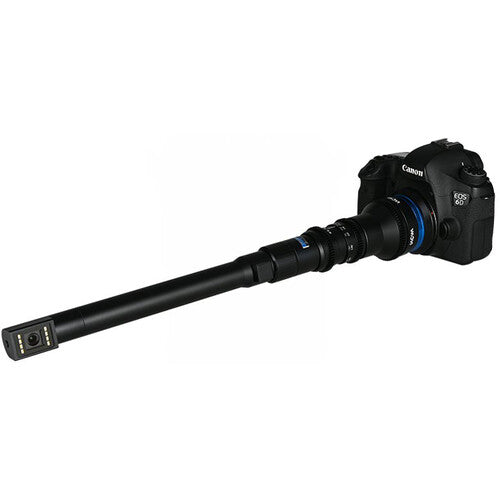

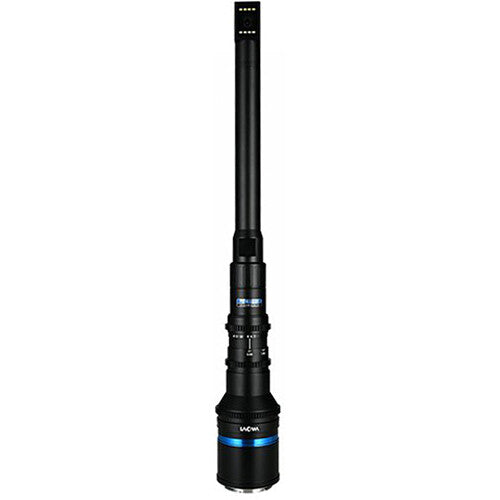

VE2414P-EF Laowa Venus Optics 24mm T14-40 Full Frame 2x Periprobe Cine Lens
The Venus Optics LAOWA 24mm T14-40 Full Frame 2x PeriProbe Cine Lens captures sharp magnified shots with full frame camera sensors using their Canon EF-mount and has a focal length of 24mm. Its periscope-style lens tube with interchangeable ends features an aperture range of T14 to T40 for a deep or shallow depth of field. Use it underwater or in tight spaces, thanks to its waterproof front barrel and slim profile.
-
Maximum T14 aperture for greater depth of field at close distances
-
Cinema industry-standard 0.8 MOD focus and iris gears compatible with follow focus and iris controls
-
Manually focus on objects only 0.8" away at 2x magnification
-
Lens construction of 28 elements in 19 groups for smooth, circular bokeh
-
A wide 85° perspective to create a "bug-eye" effect
-
Long 15.7" lens barrel for access to tight spaces, stay a safe distance from subjects
-

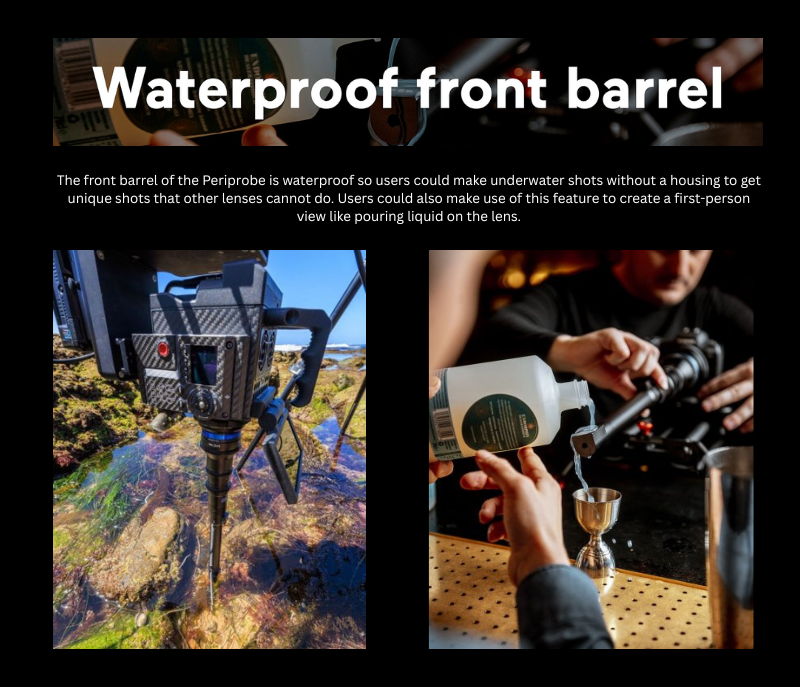

Waterproof front barrel for underwater shots without requiring a waterproof housing
-
360° rotation with a clutch mechanism to adjust the orientation ring
-
Switch between 90° periscope to straight probe
-
1/4"-20 thread for mounting of fill lights
VE2414P-RF Laowa Venus Optics 24mm T14-40 Full Frame 2x PeriProbe Cine Lens (RF Mount)
The Venus Optics LAOWA 24mm T14-40 Full Frame 2x PeriProbe Cine Lens captures sharp magnified shots with full frame camera sensors using their Canon RF-mount and has a focal length of 24mm. Its periscope-style lens tube with interchangeable ends features an aperture range of T14 to T40 for a deep or shallow depth of field. Use it underwater or in tight spaces, thanks to its waterproof front barrel and slim profile.
-
Covers Full Frame Format
-
T14 to T40 Aperture Range
-
7 Iris Blades
-
0.8" Minimum Focus Distance
-
2x Magnification
-
Interchangeable 90 and 0° Lens Tubes

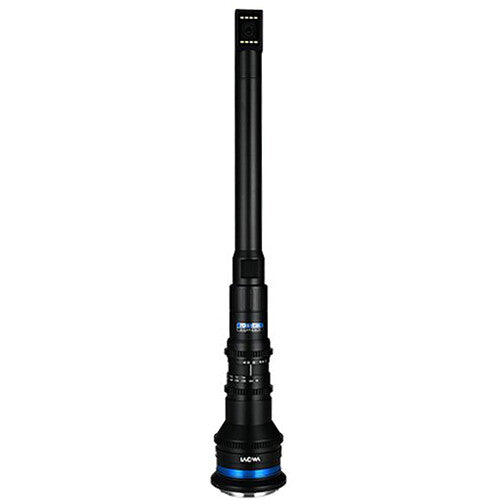

VE2414P-NZ laowa Venus Optics 24mm T14-40 Full Frame 2x Periprobe Cine Lenz (Z mount)
The Venus Optics LAOWA 24mm T14-40 Full Frame 2x PeriProbe Cine Lens captures sharp magnified shots with full frame camera sensors using their Nikon Z-mount and has a focal length of 24mm. Its periscope-style lens tube with interchangeable ends features an aperture range of T14 to T40 for a deep or shallow depth of field. Use it underwater or in tight spaces, thanks to its waterproof front barrel and slim profile.
-
Covers Full Frame Format
-
T14 to T40 Aperture Range
-
7 Iris Blades
-
0.8" Minimum Focus Distance
-
2x Magnification
-
Interchangeable 90 and 0° Lens Tubes

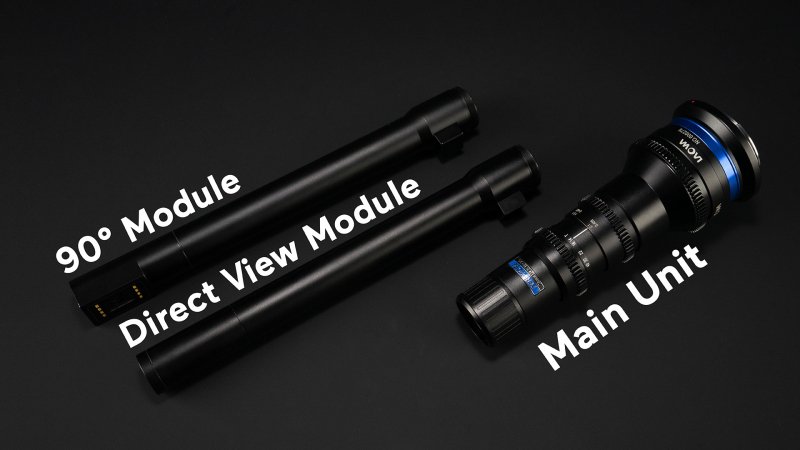

The 24mm T14 2x Periprobe includes (1) Main Unit, (1) 90° Module and (1) Direct View Module. Users could flexibly swap the modules based on the needs.
What shots Periprobe can do?

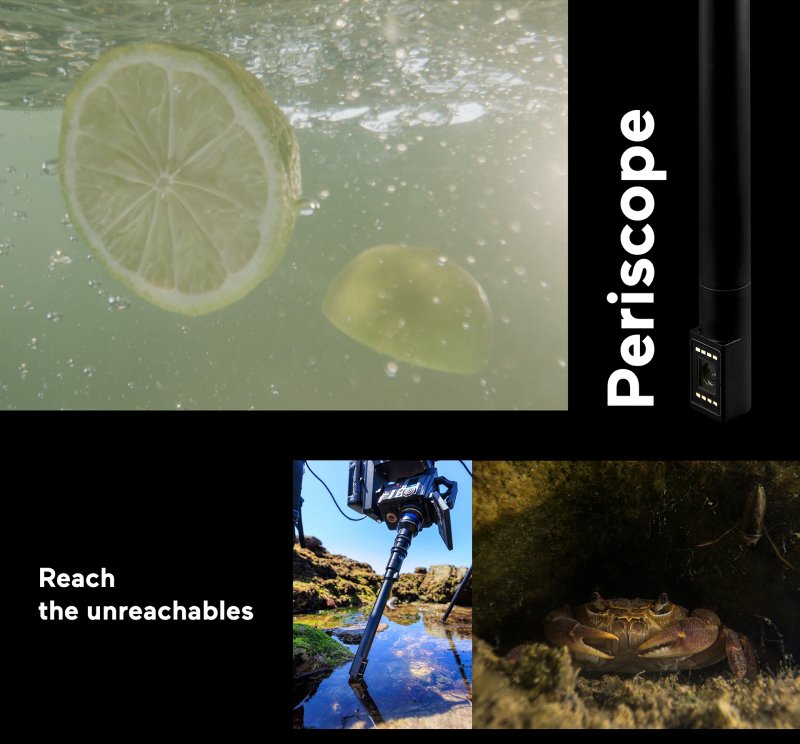

Users can hold up or down the camera with the Periprobe to create a periscope perspective. It is useful when you shoot something unreachable like the tree hole at 7’ tall or the crab hiding in an underwater cave. It also makes your set-ups easier since you do not need a big tank and waterproof housing for this shot.
It is nearly impossible to travel between objects that are close to each other unless you make a complicated mechanism with programs to move the objects back and forward to prevent from colliding. It is very time-consuming and pain for videographers to have this pre-shoot preparation. With Periprobe, you could simply travel through the tight space by rigging the cameras on sliders and tripods.
With 2x magnification, 85° wide AoV and close working distance, users could create a special close-up face-up and face-down shot that other lenses cannot do.

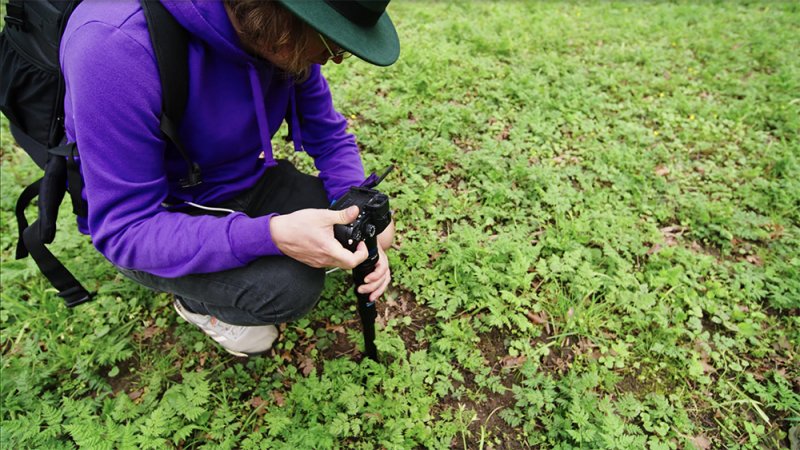

It is difficult for photographers to film close to the ground as there are always restrictions in set-ups, like the cameras and the lens itself are always obstacles. Some users would dig a hole in the ground for the cameras or need a more complicated pre-shoot set-up. With Periprobe, you could simply stick the lens tip to the ground.

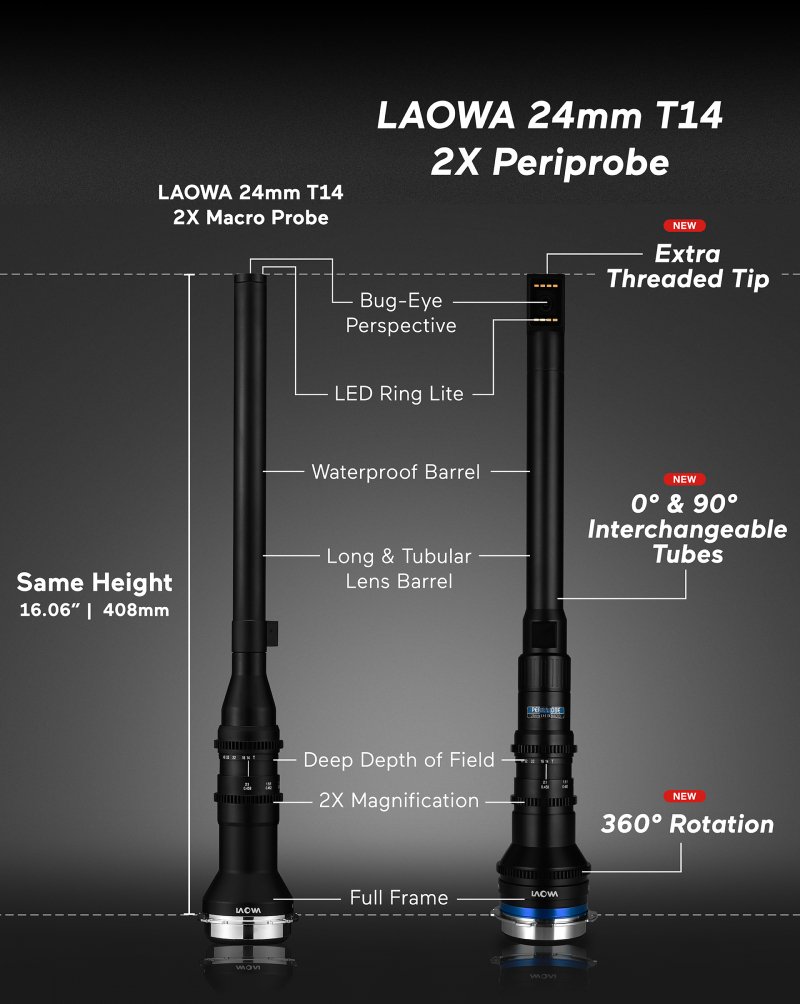

How special Periprobe is?

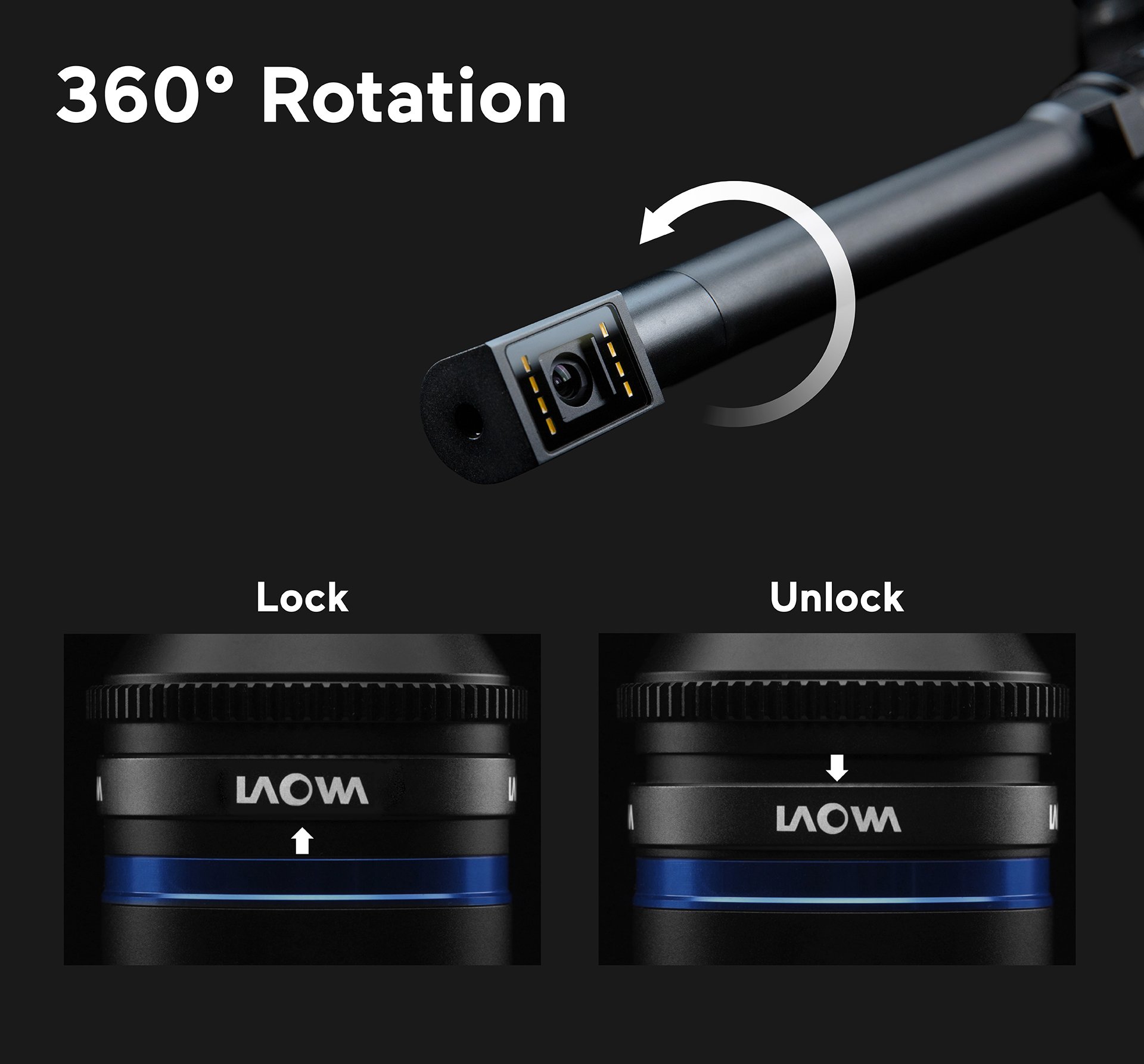

Users could use the clutch mechanism to unlock the orientation ring for perspective adjustment and different motion movements. The 0.8 Mod gear allows users to install the focus gear for smooth perspective movements.

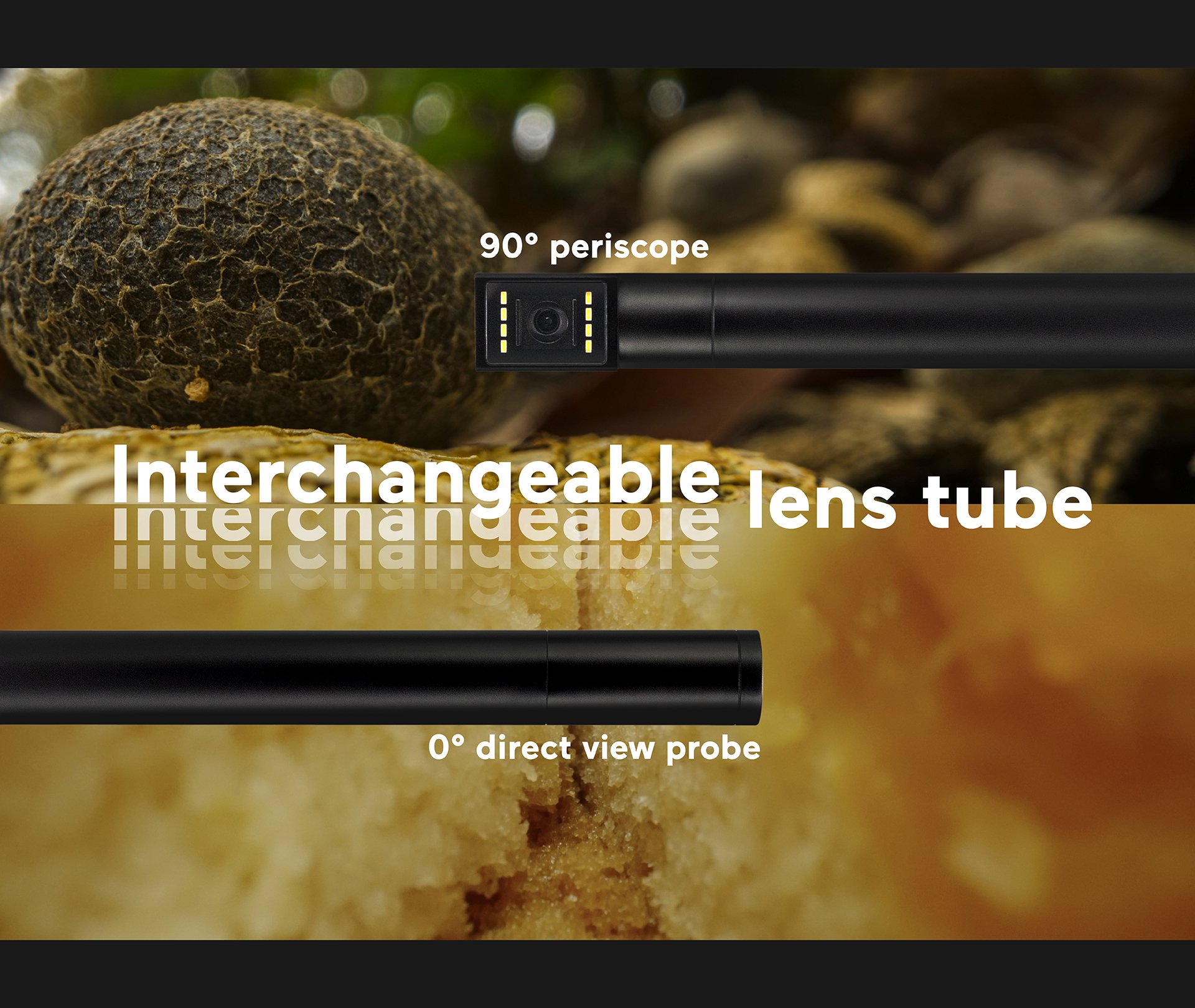

There is a direct view module included in the lens set. Users could switch back to the probe perspective with a few simple installation steps.

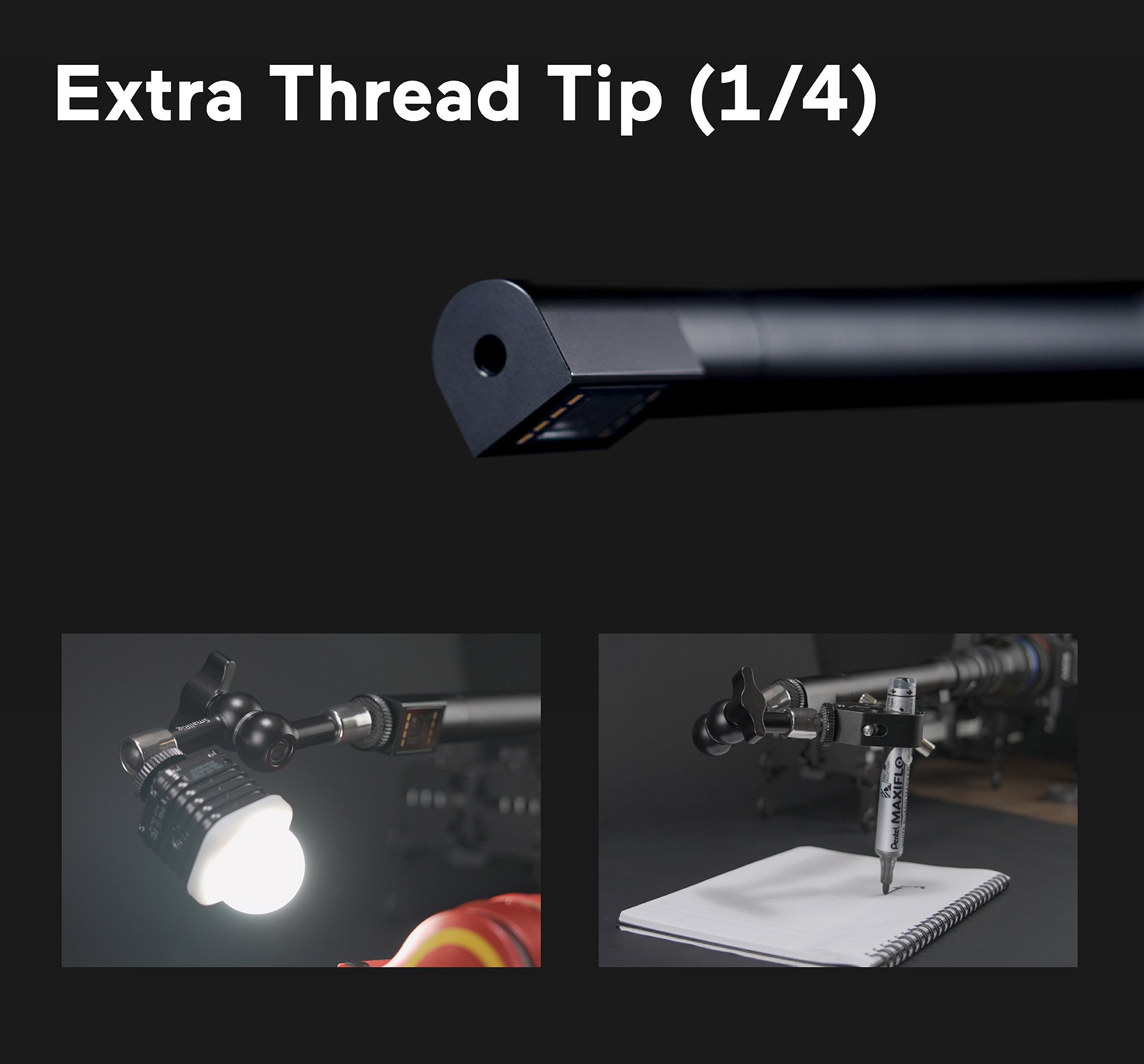

The threaded tip allows for the mounting of accessories like lighting or provides an attachment point for stabilization.
LONG & TUBULAR LENS BARREL
The long and tubular lens barrel makes itself more accessible to different subjects. With the 40cm/15.7” long barrel, you could poke it into different tight spaces like tree holes, Lego houses, etc. Users could also stay at a safe distance from the subjects.
For APS-C & M43 Users

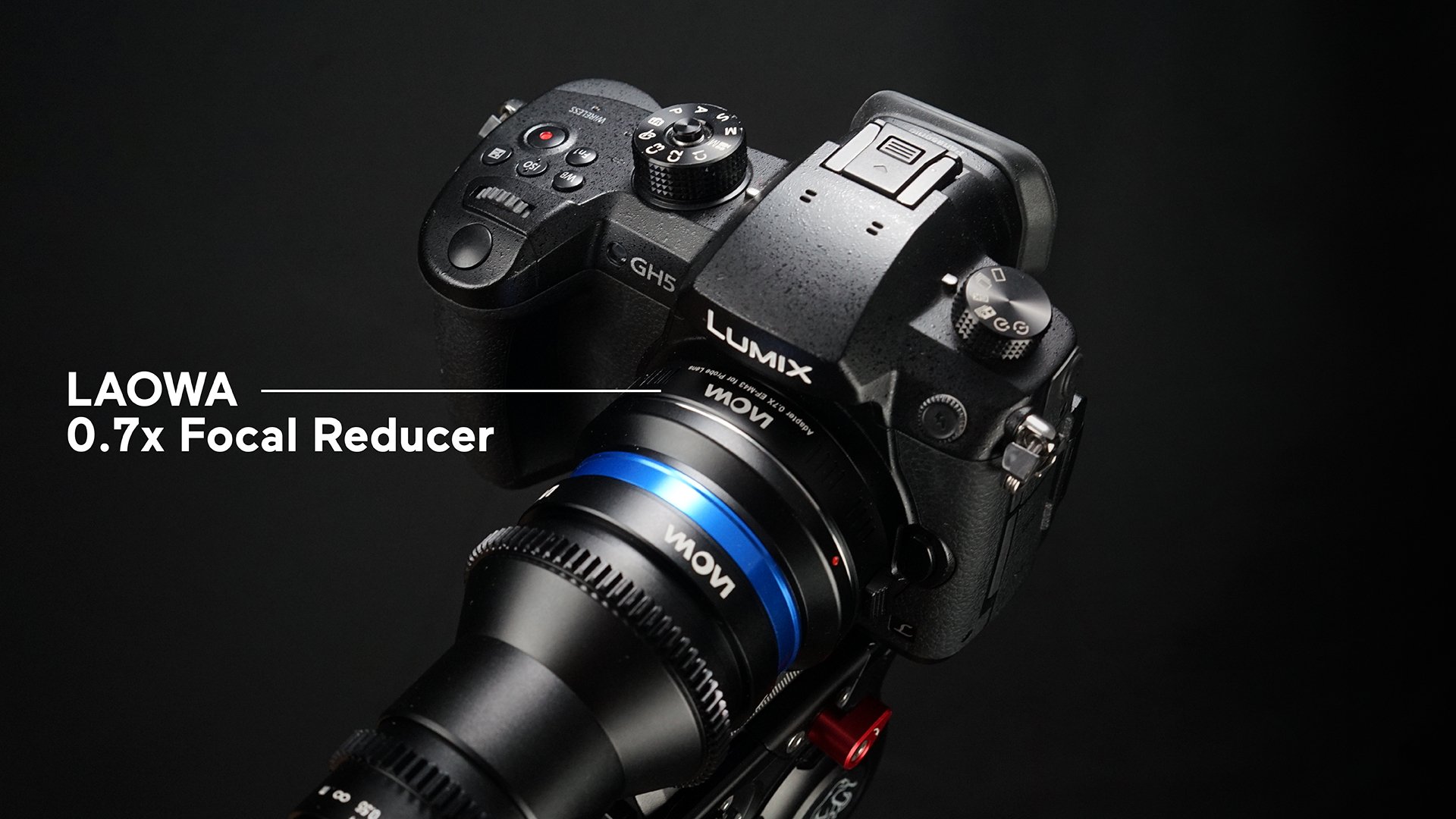

The 24mm T14 2x Periprobe is designed for full-frame cameras. However, APS-C and Micro Four Thirds users can now pair up the lens with a 0.7x focal reducer which is dedicatedly designed for the probe lens. It maintains the perspective of the lens by reducing the crop from the APS-C and M43 sensors, while it boosts the light to f/10. Click Here to acquire more information about 0.7x focal reducer. Click Here to read more information about the 0.7x focal reducer.
