Description

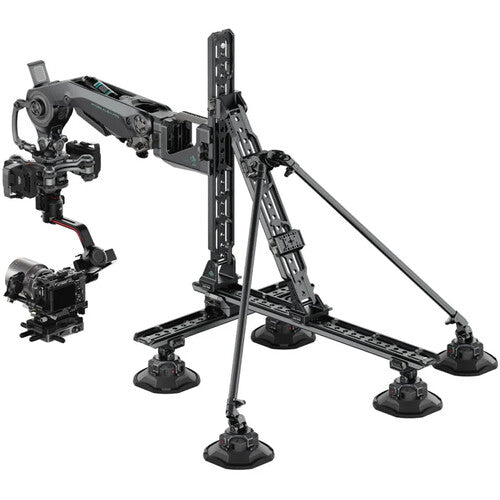

Tilta Hydra Alien Pro with Electronic Suction Cup Kit (V-Mount)

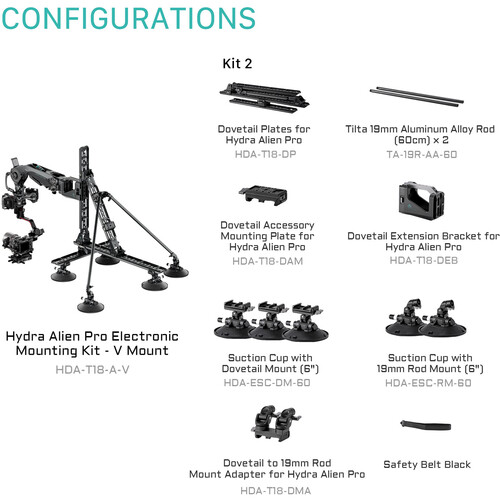

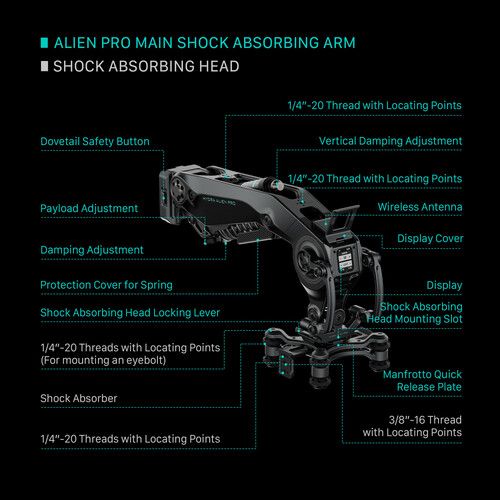

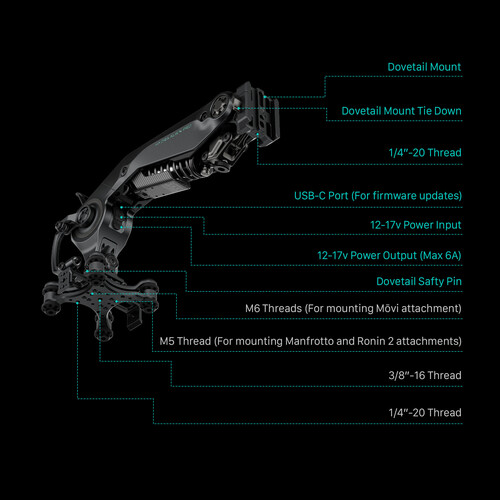

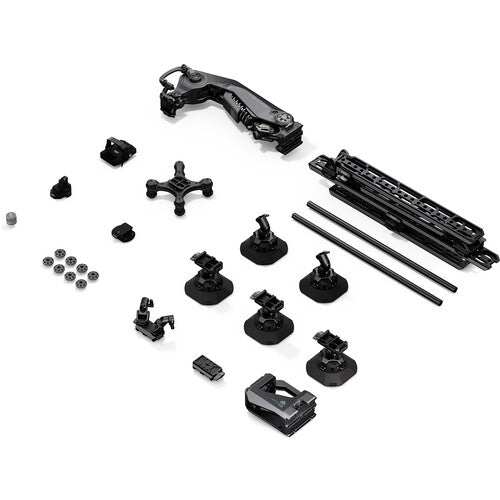

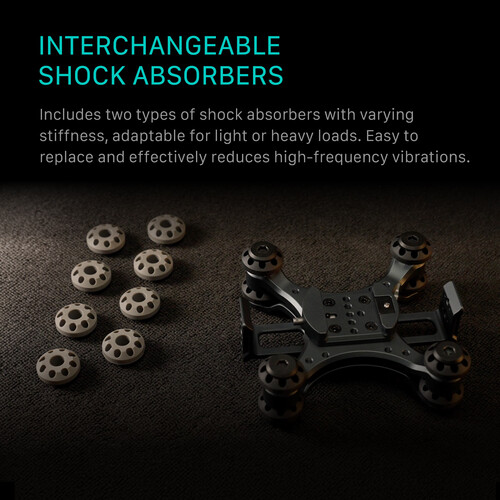

Grab smooth motion shots using a car-mounted camera rig with this Hydra Alien Pro with Electronic Suction Cup Kit from Tilta. The kit includes the full Hydra Alien Pro mounting system that features a series of rods, dovetail plates, and electronic suction cups, as well as a shock-absorbing arm, shock-absorbing head, power supply baseplate, dual V-mount plate, counterweights, swappable shock absorber kit, safety tether, a mount adapter for a DJI Ronin gimbals, and power cables.

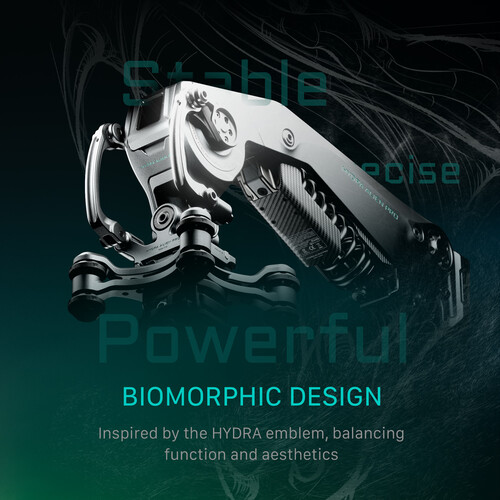

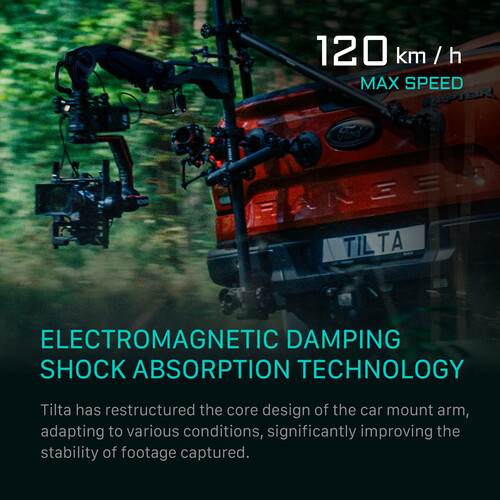

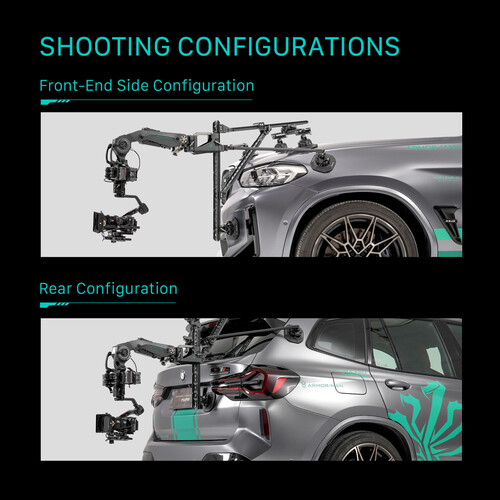

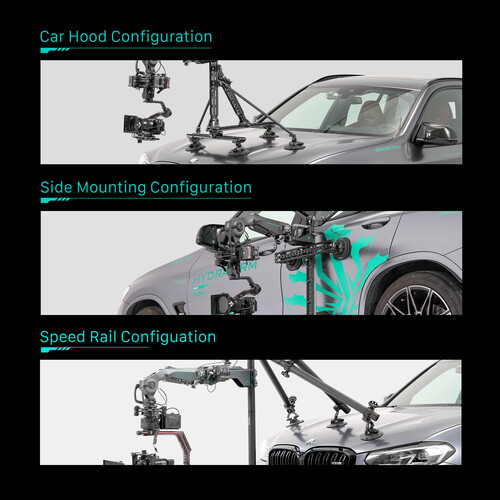

Hydra Alien Pro Car Mount

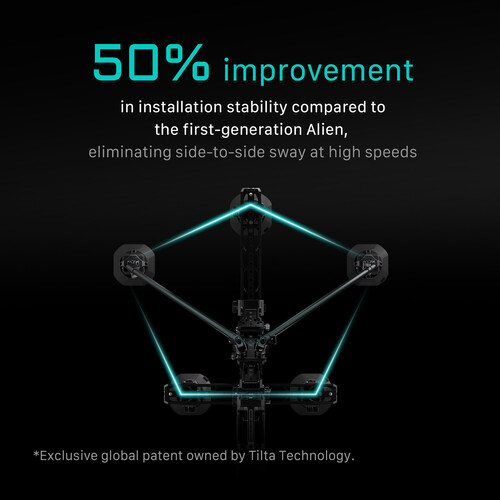

The Hydra Alien Pro car mounting system utilizes a highly customizable combination of dovetail plates and strong electronic suction cups that allow users to fine-tune the exact placement of their shot to achieve almost any angle possible when mounting onto a vehicle. The updated Pro design features added safety features such as retractable safety pins and a sliding design for small adjustments.

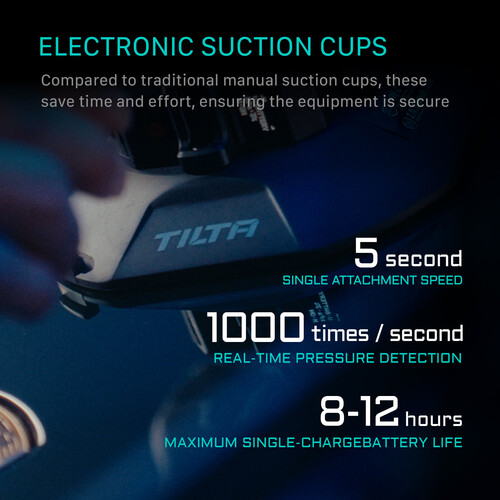

Electronic Suction Cups
The electronic suction cups provide advantages over standard suction cups with a 5-second attachment speed, 1000x per section real-time pressure detection, and 8-12 hours of battery life to maintain the hold. These enhancements are designed to save time and effort while keeping your gear even more secure.
ELECTRONIC SUCTION CUP SAFETY NOTICE
The Electronic Suction Cup, like other suction cups, has the potential to leave marks on various surfaces. It is recommended to take precautions such as using protective film or other materials to protect the surface being used. Using these suction cups in direct sunlight or in hotter environments can increase the chance of leaving a mark. It is not recommended to use these suction cups with wrapped vehicles.
It is recommended to use this suction cup on a flat surface with the weight of the arm balanced over the center of the suction cup. Extending the arm past the suction cup or side mounting the suction cup can increase the risk of failure. In these situations we recommend taking additional precautions such as further securing the system with Ratchet Straps or Safety Chains.
Regardless of additional safety measures, we always recommend pushing down the suction cup when first attaching it to any surface. The suction cup should be as flat against the surface as possible and should look noticeably flatter than when not attached. Attaching the suction cup without applying physical force to it can greatly increase the chance of accidental disconnection.

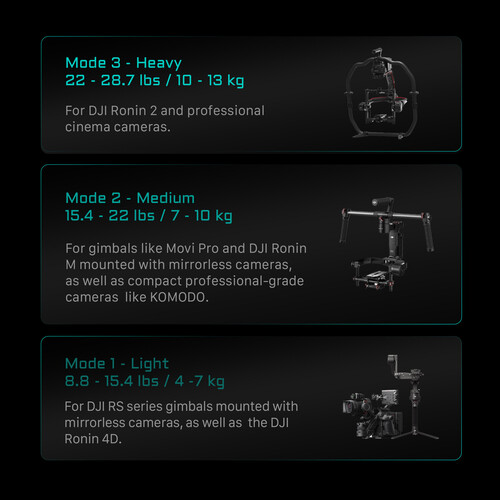

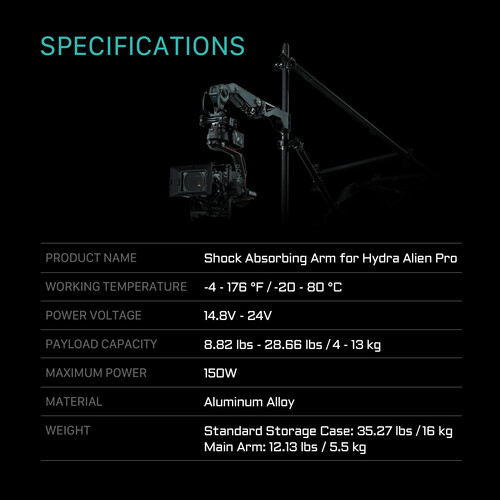

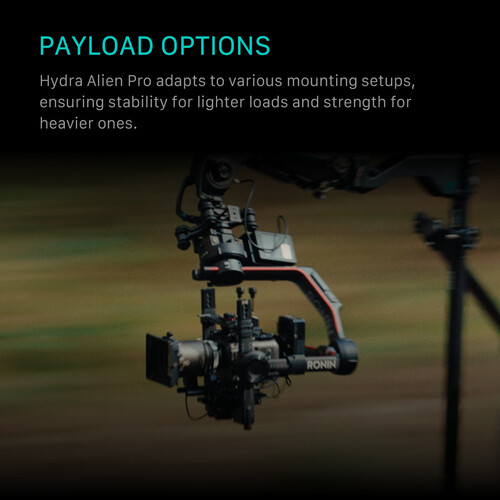

Load Capacity
The arm supports loads using different tension settings and a number of counterweights:
-
Up to 28.7 lb with the heavy setting, with rigs such as DJI RS4 Pro or Ronin 4D with a cinema camera
-
Up to 22 lb with medium setting, with rigs such as midsize gimbals like the MoVI Pro or DJI Ronin M with a compact cine camera
-
Up to 15.4 lb with the light setting, with rigs such as the DJI RS series gimbals with a mirrorless camera or the Ronin 4D

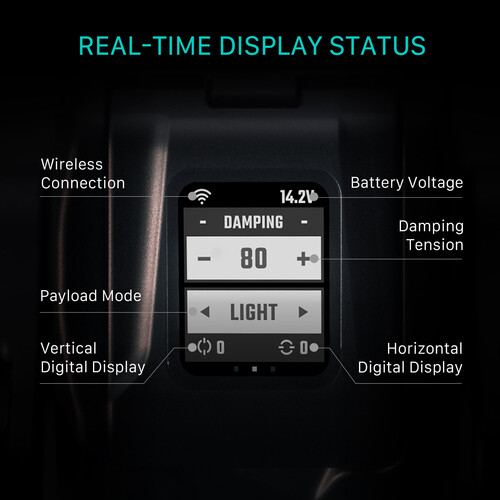

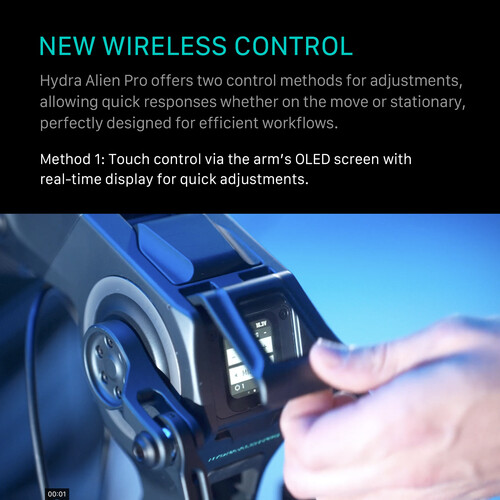

Touchscreen OLED Display

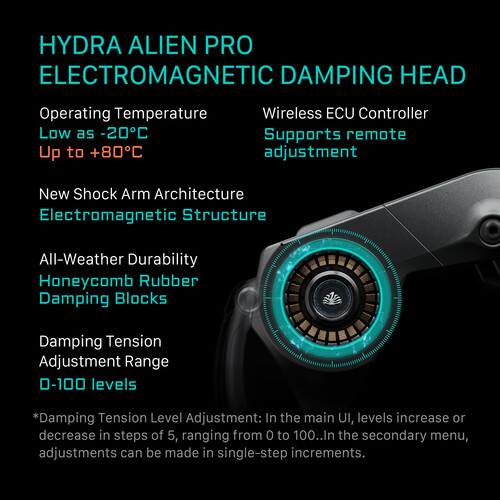

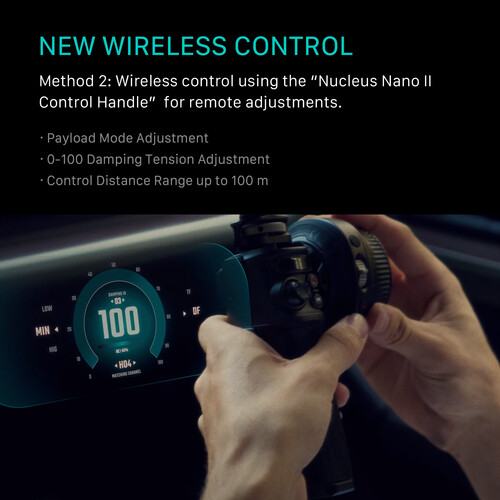

The built-in touchscreen status display provides onboard control of damping tension, battery level, payload level, and wireless signal status.
Compatible Gimbals
The shock-absorbing head can pair with the following gimbals:
-
DJI RS 4 Pro
-
DJI Ronin 4D
-
DJI Ronin-M
-
MoVI Pro
